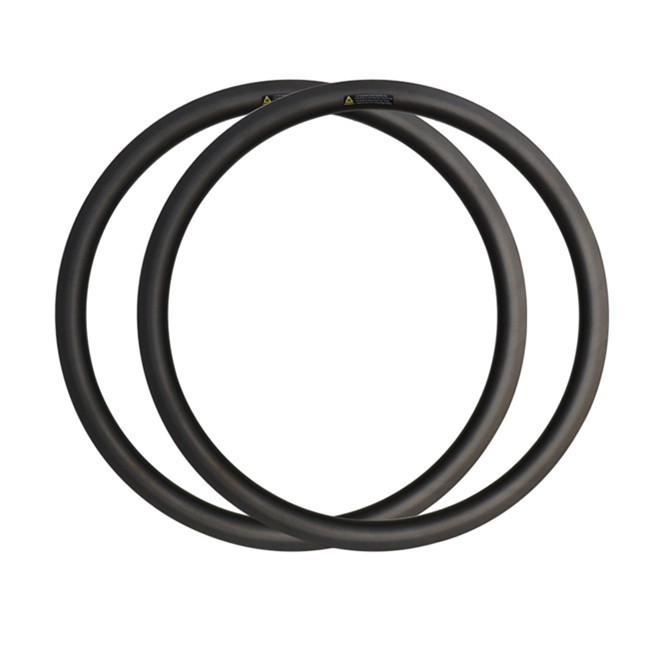

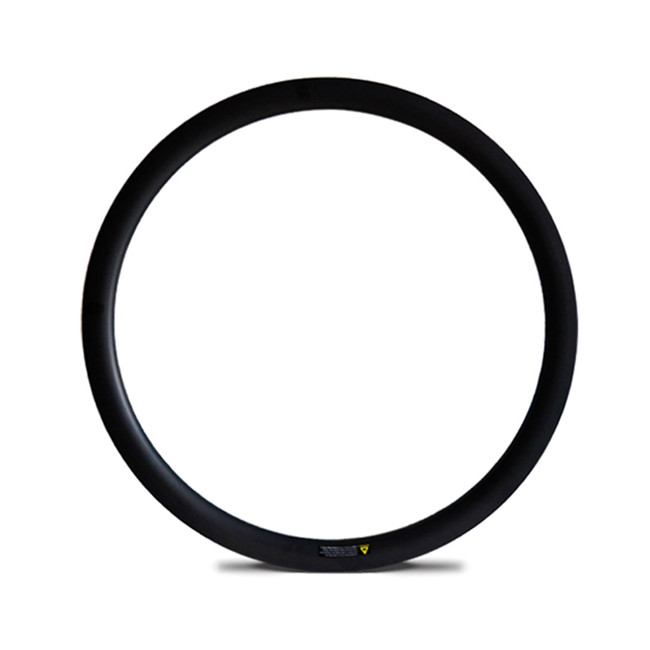

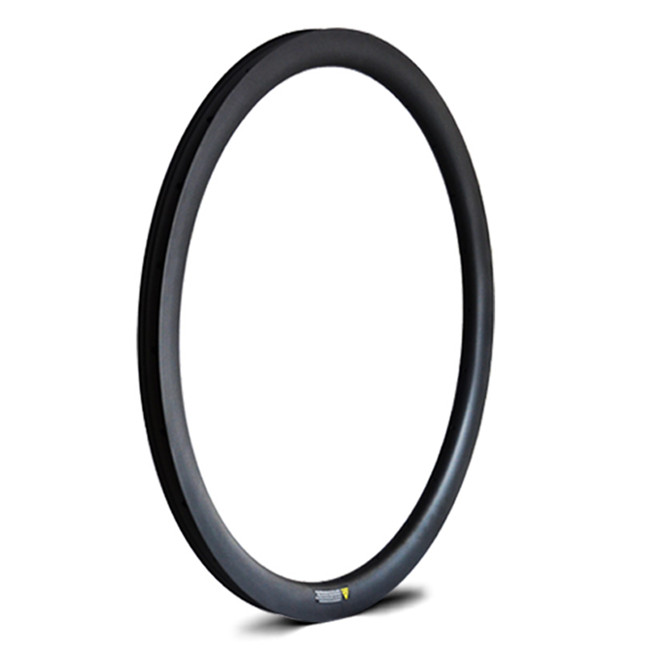

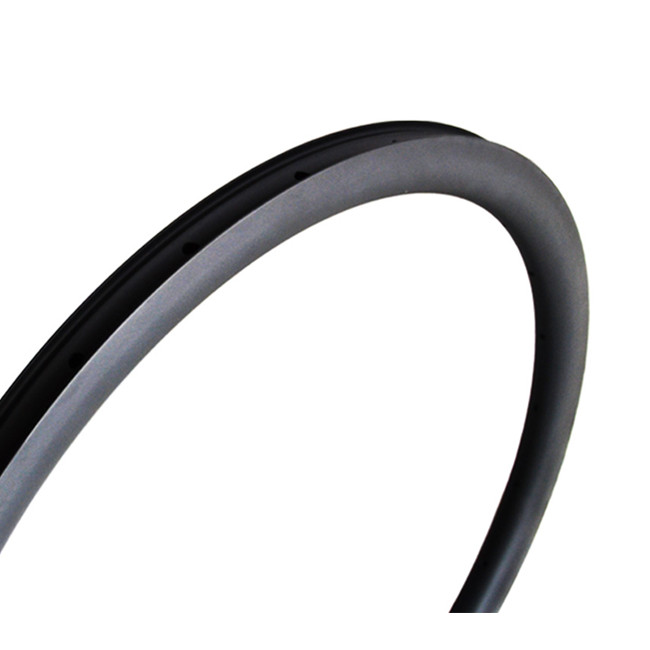

700C 28mm Width Disc Brake All Road Carbon Rims

分类： ,
,
21mm internal width medium‑depth rim delivers enhanced aerodynamics for solo gravel outings, maintaining assured handling and reliable stability when hit by crosswinds.
Built using high‑grade Toray T700S & T800 carbon fiber, this ultra‑light rim boasts an impressive strength‑to‑weight ratio backed by refined, high‑end manufacturing standards.

Smooth Wall Tech

Prepreg layers cure without creases or folds, creating flawlessly smooth surfaces on both the rim’s inner and outer walls and cutting down potential hidden quality issues.

Carbon Strip Reinforcement

Custom carbon strips improve the rim’s spoke‑tension tolerance, preserve consistent rim geometry, and bring down overall rim weight.

Impact‑Resistant Composite Structure

A purpose‑built composite layer soaks up and spreads impact force across the rim, offering better protection against crash‑caused damage.
700C Rims O.W.28mm Tubeless Ready
35284028452846285028
ModelULV160ModelULV145ModelULVD45ModelULV154ModelULV152
ERD574mmERD564mmERD551mmERD552mmERD544mm
OD633mmOD633mmOD633mmOD633mmOD633mm
Depth35mmDepth40mmDepth45mmDepth46mmDepth50mm
Regular405±15gRegular420±15gRegular425±15gRegular440±15gRegular450±15g
Light365±15gLight385±15gLight395±15gLight395±15gLight405±15g
55285828602865288828
ModelULV155ModelULVD58ModelULV84ModelULV163ModelULV85
ERD534mmERD524mmERD524mmERD514mmERD468mm
OD633mmOD633mmOD633mmOD633mmOD633mm
Depth55mmDepth58mmDepth60mmDepth65mmDepth88mm
Regular470±15gRegular480±15gRegular505±15gRegular515±15gRegular670±15g
Light430±15gLight450±15gLight465±15gLight475±15gLight600±15g



Use for: All Road, Gravel
Type:Clincher–Tubeless ready
Material: Toray T700S/T800 carbon
Holes: 16H ~ 36H
Finish: Matte/ Glossy
Weave: UD/ 3K/ 3K Twill/ 12K/ 12K Twill
Assembly Hole Dia: Ø 7.5mm
Spokes Hole Dia: Ø 4.5mm
Valve Hole Dia: Ø 6.5mm
Max Rider Weight: 130kgs/285lbs
Max Spoke Tension Tested: >300kgf
Max Tyre Pressure Tested: 125psi/8.6bar
Flatness: <0.15mm
Roundess: <0.2mm
Ultimate Strength: >100kgs
Torsion Strength: >50kgs
Dynamic Equilibrium: <3g
Standard: Base and exceed EN ISO 4210

FAQ
Q: What bikes fit this 700C all road carbon rim?
A: Designed for all-road disc brake bikes, tubeless ready.

Q: What carbon fiber is used?
A: Toray carbon fiber for light weight and good stiffness.

Q: Can we customize logos and spoke holes?
A: Custom decals and spoke hole options available for bulk OEM orders.
